Coil Cord

We manufacture a wide range of coiled cord for grounding wristbands. Standard socket terminations incorporate a one
megohm +5% resistor with a power rating of 1/4 watt. This ensures that a discrete resistance is always in closest proximity
to the wrist of the operator.

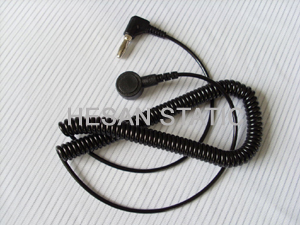

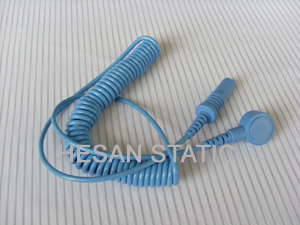

Coil Cord with banana plug


This kind of Coil cord is used for wrist strap or smocks

Specification
²
10mm, 7mm or 4mm molded female snap at one end

²        Molded banana plug at the other end

²

1Megohm resistor at snap end for safety

²

Angle Banana plug is available, which hangs out of the way of chairs
            and carts

²

Color: Black, Blue, Green, Yellow

²

Length: 6ft, 10ft, 12ft



Item             Description

CC101.0406        Coil cord, 4mm snap and straight banana plug at another end, 6ft length
CC101.0410        Coil cord, 4mm snap and straight banana plug at another end, 10ft length
CC101.0412        Coil cord, 4mm snap and straight banana plug at another end, 12ft length
CC101.0706        Coil cord, 7mm snap and straight banana plug at another end, 6ft length
CC101.0710        Coil cord, 7mm snap and straight banana plug at another end, 10ft length
CC101.0712        Coil cord, 7mm snap and straight banana plug at another end, 12ft length
CC101.1006        Coil cord, 10mm snap and straight banana plug at another end, 6ft length
CC101.1010        Coil cord, 10mm snap and straight banana plug at another end, 10ft length
CC101.1012        Coil cord, 10mm snap and straight banana plug at another end, 12ft length

CC102.0406        Coil cord, 4mm snap and angle banana plug at another end, 6ft length
CC102.0410        Coil cord, 4mm snap and angle banana plug at another end, 10ft length
CC102.0412        Coil cord, 4mm snap and angle banana plug at another end, 12ft length
CC102.0706        Coil cord, 7mm snap and angle banana plug at another end, 6ft length
CC102.0710        Coil cord, 7mm snap and angle banana plug at another end, 10ft length
CC102.0712        Coil cord, 7mm snap and angle banana plug at another end, 12ft length
CC102.1006        Coil cord, 10mm snap and angle banana plug at another end, 6ft length
CC102.1010        Coil cord, 10mm snap and angle banana plug at another end, 10ft length
CC102.1012        Coil cord, 10mm snap and angle banana plug at another end, 12ft length

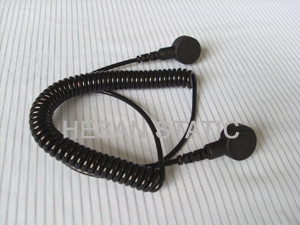

Coil Cord, Button on both side


Specification

²        10mm, 7mm or 4mm molded female snap at both ends

²        1Megohm resistor at snap end for safety

²        Color: Black, Blue, Green, Yellow

²        Length: 6ft, 10ft, 12ft



Item             Description

CC103-6ft-1010     Coil cord, 10mm stud on both end, 6ft length
CC103-10ft-1010   Coil cord, 10mm stud on both end, 10ft length
CC103-12ft-1010   Coil cord, 10mm stud on both end, 12ft length
CC103-6ft-0410     Coil cord, 4mm stud one end, 10mm stud another end, 6ft length
CC103-10ft-0410   Coil cord, 4mm stud one end, 10mm stud another end, 10ft length
CC103-12ft-0410   Coil cord, 4mm stud one end, 10mm stud another end, 12ft length

CC103-6ft-0710     Coil cord, 7mm stud one end, 10mm stud another end, 6ft length
CC103-10ft-0710   Coil cord, 7mm stud one end, 10mm stud another end, 10ft length
CC103-12ft-0710   Coil cord, 7mm stud one end, 10mm stud another end, 12ft length
CC103-6ft-0407     Coil cord, 4mm stud one end, 7mm stud another end, 6ft length
CC103-10ft-0407   Coil cord, 4mm stud one end, 7mm stud another end, 10ft length
CC103-12ft-0407   Coil cord, 4mm stud one end, 7mm stud another end, 12ft length

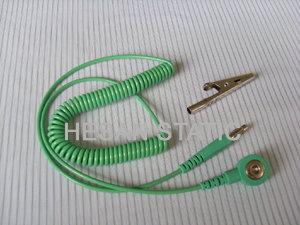

Coil Cord with Banana Jack


Specification

²        10mm, 7mm or 4mm molded female snap at one end

²        One banana jack molded on another end

²        1Megohm resistor at snap end for safety

²        Color: Black, Blue, Green, Yellow

²        Length: 6ft, 10ft, 12ft
¡¡


Item             Description

CC105-0406      Coil cord, 4mm stud and banana jack on another end, 6ft length
CC105-0706      Coil cord, 7mm stud and banana jack on another end, 6ft length
CC105-1006      Coil cord, 10mm stud and banana jack on another end, 6ft length

¡¡
