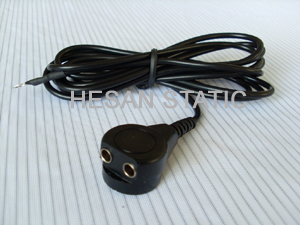

Wrist Strap/Table Mat Common Point Ground, Low Profit Type

Grounds Snaps to Bench Mat and Accepts Two Wrist Straps

Specification

²        Grounds snaps to bench mat and accepts two wrist strap

²        Provide two grounding points for wrist straps or carts

²        Ring easy attachment to ESD ground

²        Low profit reduces snagging of clothes and work instruments

²        Extra ring terminal (included) allows for customizing cord length

Item             Description

GD111-NRL-1010    Common Point Grounds, Low profit, 10ft cord, 10mm Socket, without resistor
GD111-RL-1010      Common Point Grounds, Low profit, 10ft cord, 10mm Socket, 1 Megohm resistor
GD111-NRL-1015   Common Point Grounds, Low profit, 15ft cord, 10mm Stud, without resistor
GD111-RL-1015      Common Point Grounds, Low profit, 15ft cord, 10mm Stud, 1 Megohm resistor

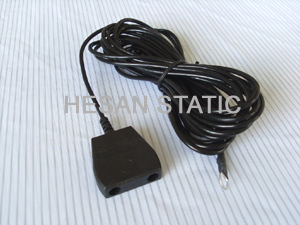

Wrist Strap/Table Mat Common Point Ground, High Profit Type

Grounds Snaps to Bench Mat and Accepts Two Wrist Straps

Specification

²        Grounds snaps to bench mat and accepts two wrist strap

²        Provide two grounding points for wrist straps or carts

²        Ring easy attachment to ESD ground

²        High profit

²        Extra ring terminal or banana plug for grounding

²        1 Megohm Resistor at snap end for safety

Item             Description

GD112-RT-1010    Common Point Grounds, high profit, 10ft cord, 10mm Socket, terminal ring
GD112-RC-1010    Common Point Grounds, high profit, 10ft cord, 10mm socket, 4mm plug and clip
GD112-RT-1015    Common Point Grounds, high profit, 15ft cord, 10mm Socket, terminal ring
GD112-RC-1015    Common Point Grounds, high profit, 15ft cord, 10mm Socket, 4mm plug and Clip

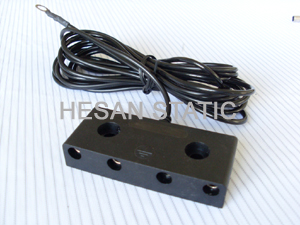

Quad Common Point Ground

Grounds up to Four People Simultaneously Snaps to Mat or Can be Mounted Underneath Bench Top

Specification

²        10mm stud snap to attach to mat surface snaps

²        Four banana jacks provide four grounding points

²        Ring terminal at end of cord allows easy attachment to building
    ground

²        Pair of mounting holes with two #10 screws allows unit to be
    securely  installed to workbench

²        Extra ring terminal (included) allows for customizing cord length

Item             Description

GD115-NRL-1010   Quad Common Point Grounds, 10ft Green cord, 10mm Stud, without resistor
GD115-RL-1010      Quad Common Point Grounds, 10ft Black cord, 10mm Stud, 1 Megohm resistor

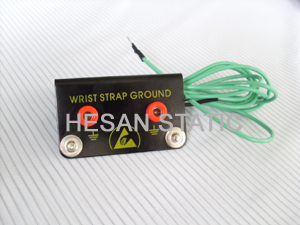

Bench Mount Ground with Two Banana Jacks

Under Bench Mounting Allows for Quick Disconnecting of banana plug and keeps cords out of the way of workers

Specification

²        Grounds two people without using work surface space

²        Two banana jacks allow for two people to ground wrist straps

²        Ring terminal at end of cord allows easy attachment to building
    ground

²        Mounts under the front of workstations-saves work space

²        Two “parking studs” allow for storage when not in use preventing
    accidental damage to cord

²        Extra ring terminal (included) allows for customizing cord length

Item             Description

GD116-NR-1010   Bench Mount Ground, 10ft Green cord, 4mm parking stud, without resistor

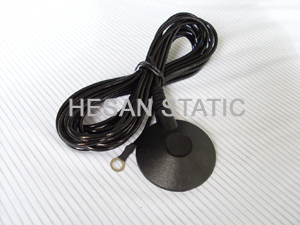

Floor Mat Ground Cord

Snap attach or Bolt to Mat

Specification

²        Low Profit-helps keep employees from tripping on cord connection
           10mm snap (stud or socket) easily snaps to mat

²        Ring terminal/Banana plug at end of cord allows easy attachment
     to building ground

²        Molded dome cap reduces tripping

²        flush with mat surface, Chairs can easily roll over them without
    getting snagged

²        Extra ring terminal (included) allows for customizing cord length

²        1 Megohm Resistor or No Resistor

GD101 Serial

GD103 Serial

Item             Description

GD101-RM-1006   Floor Mat Grounds Cord, 6ft cord, 10mm Stud, Plug and Clip, 1 Megohm
GD101-RF-1006    Floor Mat Grounds Cord, 6ft cord, 10mm Socket, plug and Clip, 1 Megohm
GD101-RM-1010   Floor Mat Grounds Cord, 10ft cord, 10mm Stud, Plug and Clip, 1 Megohm
GD101-RF-1010    Floor Mat Grounds Cord, 10ft cord, 10mm Socket, plug and Clip, 1 Megohm
GD101-RM-1015   Floor Mat Grounds Cord, 15ft cord, 10mm Stud, Plug and Clip, 1 Megohm
GD101-RF-1015    Floor Mat Grounds Cord, 15ft cord, 10mm Socket, plug and Clip, 1 Megohm
GD101-NRM          Floor Mat Ground Cord, 10mm Stud, Plug and Clip, No resistor
GD101-NRF           Floor Mat Ground Cord, 10mm Socket, Plug and Clip ,No resistor

GD103-RM-1006   Floor Mat Grounds Cord, 6ft cord, 10mm Stud, Terminal Ring, 1 Megohm
GD103-RF-1006    Floor Mat Grounds Cord, 6ft cord, 10mm Socket, Terminal Ring, 1 Megohm
GD103-RM-1010   Floor Mat Grounds Cord, 10ft cord, 10mm Stud, Terminal Ring, 1 Megohm
GD103-RF-1010    Floor Mat Grounds Cord, 10ft cord, 10mm Socket, Terminal Ring, 1 Megohm
GD103-RM-1015   Floor Mat Grounds Cord, 15ft cord, 10mm Stud, Terminal Ring, 1 Megohm
GD103-RF-1015    Floor Mat Grounds Cord, 15ft cord, 10mm Socket, Terminal Ring, 1 Megohm
GD103-NRM          Floor Mat Ground Cord, 10mm Stud, Terminal Ring ,No resistor
GD103-NRF           Floor Mat Ground Cord, 10mm Socket, Terminal Ring ,No resistor

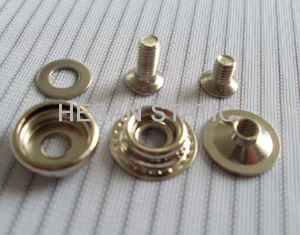

Universal Snap Kit

Recommended for Homogeneous and 2 Layer and 3 Layer Mats

Specification
²        Allows you to install snap exactly where desired on mat

²        Provides Secure threaded attachment, but is reusable

²        Kit includes a 10mm stud, 10mm socket, threaded backing
     washer,  long screw, short screw.

²        Everything needed to field install a stud or socket on most
    material

Item             Description

GD120             Universal Snap Kit

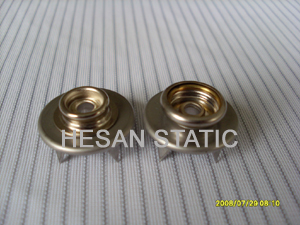

Push and Clinch Snap

Recommended for Multi-Layer ESD Mats to Make Connection with Conductive Inner Layer

Specification

²        Pronged 10mm stud or socket snap

²        Ideal for multi layer rubber or vinyl mats

²        Mounts quickly and easily on any soft mat

Item             Description

GD121-Stud          Push and Clinch Snap, 10mm stud
GD121-Socket      Push and Clinch Snap, 10mm socket

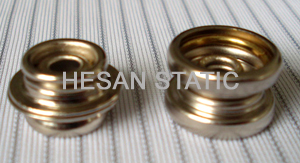

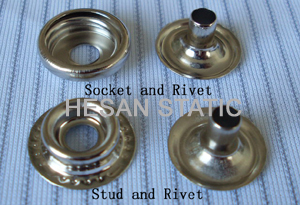

Snaps

Recommended for Multi-Layer ESD Mats to Make Connection with Conductive Inner Layer

Specification
²        10mm stud or socket snap

²        Ideal for multi layer rubber or vinyl mats

²        Best way to ground work mats Use with Snap Tool

²        100pcs/bag

Item             Description

GD122-Stud          Snap, 10mm stud and rivets
GD122-Socket      Snap, 10mm socket and rivets

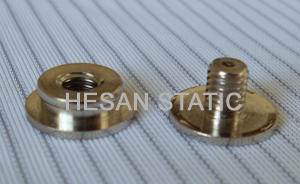

Screw Snap Set

Recommended for 2-Layer ESD Mats to Make Connection with Conductive Inner Layer

Specification

²        10mm stud

²        Copper W/Chrome

²        Easy way to ground work mats

Item             Description

GD123-Stud        Screw Snap Set, 10mm stud

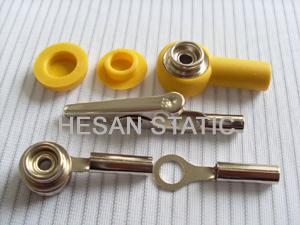

Banana Plug Adaptor and Ring


Compatible and interchangeable with any standard banana plug

Specification

²        Easy contacting banana plug to grounding

²        Clip, Ring terminal, Socket, Stud can be selected for different
     grounding method

Item                                 Description

GD124                           Alligator Clip, pack of 10pcs
GD125                           Ring terminal Banana Jack, pack of 10pcs
GD126-Stud                 Stacking Banana Jack Snap, 10mm stud
GD126-Socket             Stacking Banana Jack Snap, 10mm socket
GD126-stud&Socket   Stacking Banana Jack Snap, 10mm stud and Socket
GD127                          Molded Banana Jack Snap, 10mm stud and Socket

Snap Adapters

Compatible and interchangeable with all major snap manufacturers

Item                           Description

GD128-stud             Connects 10mm stud to 10mm stud

GD128-socket         Connects 10mm socket to 10mm socket
