WRIST STRAPS

 Wrist strap-Reliable Path-to-Ground

²        Comfort and reliability, while providing rapid and continuous drain of static charge

²        Simplify Adjustment, one size adjusts to any size wrist

²        A one megohm resistor is built into the ground cord

²        Including an alligator clip, which fits over the installed banana jack on the ground cord, to provide an alternative ground attachment methed

²        Available with 4mm(1/8), 7mm(1/4) and 10mm(3/8) snap end

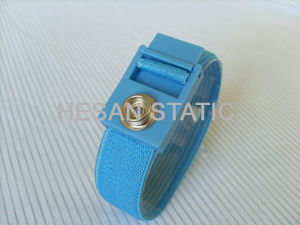

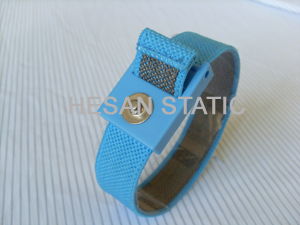

Top Quality Fabric Wrist Straps

Specification

Wrist Band:

Length

220mm

Inner Surface

Elastic Nylon with silver plated threads

Outer Surface

Elastic Nylon, insulative

Color

Light Blue, Maroon

Resistance

150-200 Ohm/inch

Plastic Parts

ABS/PC

Back Plate

304 Stainless Steel, Non-allergenic

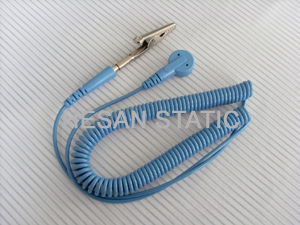

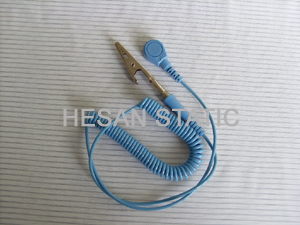

Coil Cord:

Conductor

7-Strand Twin tinsel wire

Jacket Insulation

90 Shore A Polyurethane

Wire Diameter

0.10"

Coil Diameter

0.04' 0.02'

Molding Material

Polyurethane

Color

Light Blue, Black

ITEM

WS101-TP-B
WS101-TP-0406
WS101-TP-0410
WS101-TP-0412
WS101-TP-0706
WS101-TP-0710
WS101-TP-0712 WS101-TP-1006
WS101-TP-1010
WS101-TP-1012

DESCRIPTION

Wrist Strap, Top Quality, band only
Wrist Strap, Top Quality, 6ft coil cord with 4mm snap
Wrist Strap, Top Quality, 10ft coil cord with 4mm snap
Wrist Strap, Top Quality, 12ft coil cord with 4mm snap
Wrist Strap, Top Quality, 6ft coil cord with 7mm snap
Wrist Strap, Top Quality, 10ft coil cord with 7mm snap
Wrist Strap, Top Quality, 12ft coil cord with 7mm snap
Wrist Strap, Top Quality, 6ft coil cord with 10mm snap
Wrist Strap, Top Quality, 10ft coil cord with 10mm snap
Wrist Strap, Top Quality, 12ft coil cord with 10mm snap

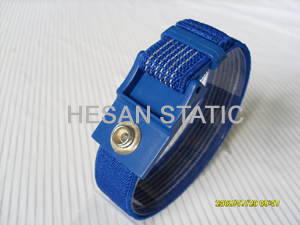

Standard Fabric Wrist Straps

Specification

Wrist Band:

Length

200mm

Inner Surface

conductive stainless steel Polyester fiber blend

Outer Surface

Polyester Fiber, insulative

Color

Light Blue, Maroon, Dark Blue, Yellow, Green

Resistance

150-200 Ohm/inch

Plastic Parts

ABS

Back Plate

304 Stainless Steel, Non-allergenic

Coil Cord:

Conductor

7-Strand single tinsel wire

Jacket Insulation

90 Shore A Polyurethane

Wire Diameter

0.09"

Coil Diameter

0.04' 0.02'

Molding Material

PVC

Color

Light Blue, Black, Yellow, Green

ITEM

WS101-ST-B
WS101-ST-0406
WS101-ST-0410
WS101-ST-0706
WS101-ST-0710
WS101-ST-1006
WS101-ST-1010

DESCRIPTION

Wrist Strap, Standard Quality, band only
Wrist Strap, Standard Quality, 6ft coil cord with 4mm snap
Wrist Strap, Standard Quality, 10ft coil cord with 4mm snap
Wrist Strap, Standard Quality, 6ft coil cord with 7mm snap
Wrist Strap, Standard Quality, 10ft coil cord with 7mm snap
Wrist Strap, Standard Quality, 6ft coil cord with 10mm snap
Wrist Strap, Standard Quality, 10ft coil cord with 10mm snap



ECONO Fabric Wrist Straps

Specification

Wrist Band:

Length

200mm

Inner Surface

conductive stainless steel Polyester fiber blend

Outer Surface

Polyester Fiber, insulative

Color

Light Blue

Resistance

150-200 Ohm/inch

Plastic Parts

ABS

Back Plate

304 Stainless Steel, Non-allergenic

Coil Cord:

Conductor

7-Strand single tinsel wire

Jacket Insulation

90 Shore A Polyurethane

Wire Diameter

0.08"

Coil Diameter

0.04' 0.02'

Molding Material

PVC

Color

Light Blue, Black

ITEM

WS101-EC-B
WS101-EC-0706
WS101-EC-0710
Ws101-EC-0712
WS101-EC-1006
WS101-EC-1010
WS101-EC-1012

DESCRIPTION

Wrist Strap, ECONO Quality, band only
Wrist Strap, ECONO Quality, 6ft coil cord with 7mm snap
Wrist Strap, ECONO Quality, 10ft coil cord with 7mm snap
Wrist Strap, ECONO Quality, 12ft coil cord with 7mm snap
Wrist Strap, ECONO Quality, 6ft coil cord with 10mm snap
Wrist Strap, ECONO Quality, 10ft coil cord with 10mm snap
Wrist Strap, ECONO Quality, 12ft coil cord with 10mm snap



TOP Quality Fabric Wrist Straps, Non-Allergenic Type

Specification




Wrist Band:

Length

220mm

Inner Surface

Elastic Nylon with silver plated threads

Outer Surface

Elastic Nylon, insulative

Color

Light Blue, Maroon

Resistance

150-200 Ohm/inch

Plastic Parts

ABS/PC

Back Plant

Conductive Plastic, Non-allergenic, No Metal in skin contact

ITEM

WS103-TP-B
WS103-TP-0406
WS103-TP-0410
WS103-TP-0412
WS103-TP-0706
WS103-TP-0710
WS103-TP-0712
WS103-TP-1006
WS103-TP-1010
WS103-TP-1012

DESCRIPTION

Wrist Strap, Non-allergenic, Top Quality, band only
Wrist Strap, Non-allergenic, Top Quality, 6ft coil cord with 4mm snap
Wrist Strap, Non-allergenic, Top Quality, 10ft coil cord with 4mm snap
Wrist Strap, Non-allergenic, Top Quality, 102ft coil cord with 4mm snap
Wrist Strap, Non-allergenic, Top Quality, 6ft coil cord with 7mm snap
Wrist Strap, Non-allergenic, Top Quality, 10ft coil cord with 7mm snap
Wrist Strap, Non-allergenic, Top Quality, 12ft coil cord with 7mm snap
Wrist Strap, Non-allergenic, Top Quality, 6ft coil cord with 10mm snap
Wrist Strap, Non-allergenic, Top Quality, 10ft coil cord with 10mm snap
Wrist Strap, Non-allergenic, Top Quality, 12ft coil cord with 10mm snap



Standard Fabric Wrist Straps, Non-Allergenic Type


Specification




Wrist Band:

Length

220mm

Inner Surface

conductive stainless steel Polyester fiber blend

Outer Surface

Polyester Fiber, insulative

Color

Light Blue, Maroon

Resistance

150-200 Ohm/inch

Plastic Parts

ABS

Back Plant

ABS, Non-allergenic, No Metal in skin contact



ITEM

WS103-ST-B
WS103-ST-0406
WS103-ST-0410
WS103-ST-0412
WS103-ST-0706
WS103-ST-0710
WS103-ST-0712
WS103-ST-1006
WS103-ST-1010
WS103-ST-1012

DESCRIPTION

Wrist Strap, Non-allergenic, Standard Quality, band only
Wrist Strap, Non-allergenic, Standard Quality, 6ft coil cord with 4mm snap
Wrist Strap, Non-allergenic, Standard Quality, 10ft coil cord with 4mm snap
Wrist Strap, Non-allergenic, Standard Quality, 12ft coil cord with 4mm snap
Wrist Strap, Non-allergenic, Standard Quality, 6ft coil cord with 7mm snap
Wrist Strap, Non-allergenic, Standard Quality, 10ft coil cord with 7mm snap
Wrist Strap, Non-allergenic, Standard Quality, 12ft coil cord with 7mm snap
Wrist Strap, Non-allergenic, Standard Quality, 6ft coil cord with 10mm snap
Wrist Strap, Non-allergenic, Standard Quality, 10ft coil cord with 10mm snap
Wrist Strap, Non-allergenic, Standard Quality, 12ft coil cord with 10mm snap



EA Fabric Wrist Straps,


Specification



Wrist Band:

Length

220mm

Inner Surface

conductive stainless steel Polyester fiber blend

Outer Surface

Polyester Fiber, insulative

Color

Light Blue, Dark Blue, Maroon

Resistance

150-200 Ohm/inch

Plastic Parts

ABS

Back Plant

304 Stainless Steel, Non-allergenic

ITEM

WS102-ST-B

DESCRIPTION

Wrist Strap, EA type, Standard type, band only

all wrist band could fit our coil cord easily.


EB Fabric Wrist Straps,


Specification



Wrist Band:

Length

220mm

Inner Surface

conductive stainless steel Polyester fiber blend

Outer Surface

Polyester Fiber, insulative

Color

Light Blue, Maroon

Resistance

150-200 Ohm/inch

Plastic Parts

ABS

Back Plant

304 Stainless Steel, Non-allergenic

ITEM

WS110-ST-B

DESCRIPTION

Wrist Strap, EB type, Standard Type band only

all wrist band could fit our coil cord easily.



EC Fabric Wrist Straps,


Specification



Wrist Band:

Length

220mm

Inner Surface

conductive stainless steel Polyester fiber blend

Outer Surface

Polyester Fiber, insulative

Color

Dark Blue

Resistance

150-200 Ohm/inch

Plastic Parts

ABS

Back Plant

304 Stainless Steel, Non-allergenic

ITEM
WS111-ST-B

DESCRIPTION
Wrist Strap, EC type, Standard type, band only

all wrist band could fit our coil cord easily.



ED Fabric Wrist Straps,

Specification

Wrist Band:

Length

220mm

Inner Surface

Elastic Nylon with silver plated threads

Outer Surface

Elastic Nylon, insulative

Color

Blue, Maroon

Resistance

150-200 Ohm/inch

Plastic Parts

ABS

Back Plant

304 Stainless Steel, Non-allergenic

ITEM

WS112-TP-B

DESCRIPTION

Wrist Strap, ED type, Top Quality, band only

all wrist band could fit our coil cord easily.

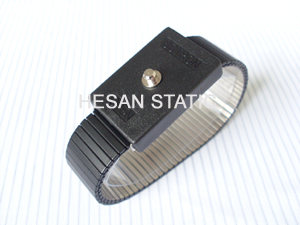

Metal Fixed Size Wrist Straps,


Specification

Wrist Band:

Length

160mm, 180mm, 200mm

Inner Surface

#304 Stainless Steel, Non-coating

Outer Surface

#304 Stainless Steel Coated PVF film, Insulated

Color

Black, Blue

Resistance

1-5 Ohm/inch

Back Plant

304 Stainless Steel, Non-allergenic

ITEM

WS106-FB-S
WS106-FB-M
WS106-FB-L

DESCRIPTION

Metal Fixed Wrist Strap, Small size 160mm, band only
Metal Fixed Wrist Strap, Medium size 180mm, band only
Metal Fixed Wrist Strap, Large size 200mm, band only

all wrist band could fit our coil cord easily.

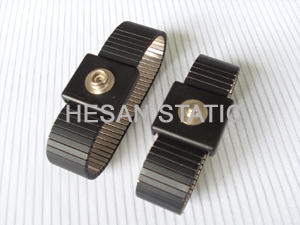

Metal Adjustable Wrist Straps


Specification

Wrist Band:

Length

160mm--200mm

Inner Surface

#304 Stainless Steel, Non-coating

Outer Surface

#304 Stainless Steel Coated PVF film, Insulated

Color

Black, Blue

Resistance

1-5 Ohm/inch

Back Plant

304 Stainless Steel, Non-allergenic

ITEM

WS107-ADB

DESCRIPTION

Metal Adjustable Wrist Strap, band only

all wrist band could fit our coil cord easily.



Velcro Adjustable Wrist Straps


Specification

Wrist Band:

Length

220mm

Inner Surface

Conductive Polyester Band

Outer Surface

Black. Made of Nylon Material

Resistance

1000-2000 Ohm/inch

Plastic Parts

ABS

Back Plant

304 Stainless Steel, Non-allergenic

ITEM

WS105-CP-B

DESCRIPTION

Velcro Wrist Strap, Conductive Poly inner, band only


all wrist band could fit our coil cord easily.

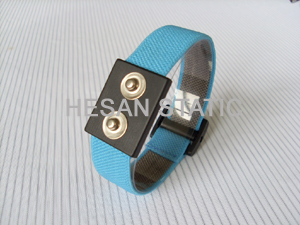

Dual Wire Fabric Wrist Straps


Specification

Wrist Band:

Length

220mm

Inner Surface

Elastic Nylon with silver plated threads

Outer Surface

Elastic Nylon, insulative

Color

Light Blue

Resistance

150-200 Ohm/inch

Plastic Parts

ABS/PC

Back Plant

304 Stainless Steel, Non-allergenic

Coil Cord:

Conductor

7-Strand Twin tinsel wire

Jacket Insulation

90 Shore A Polyurethane

Wire Diameter

0.08"

Plug

Right Angle (90 degree) mono plug

Molding Material

Polyurethane

Color

Black, Gray

ITEM

WS104-TP-B
WS104-TP-0406
WS104-TP-0410
WS104-TP-0412
WS104-TP-0706
WS104-TP-0710
WS104-TP-0712

DESCRIPTION

Dual Wrist Strap, Top Quality, band only
Dual Wrist Strap, Top Quality, 6ft coil cord with 4mm snap
Dual Wrist Strap, Top Quality, 10ft coil cord with 4mm snap
Dual Wrist Strap, Top Quality, 12ft coil cord with 4mm snap
Dual Wrist Strap, Top Quality, 6ft coil cord with 7mm snap
Dual Wrist Strap, Top Quality, 10ft coil cord with 7mm snap
Dual Wrist Strap, Top Quality, 12ft coil cord with 7mm snap

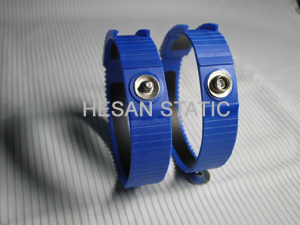

Cleanroom PU Wrist Straps

Specification

Wrist Band:

Inner Surface

Conductive TPU

Outer Surface

Insulated TPU

Resistance

1000-2000 Ohm/inch

Adjustment

Easy and Quick to any size





ITEM

WS115

DESCRIPTION

Cleanroom Wrist Strap, band only


all wrist band could fit our coil cord easily.
